SPOKES



SAPIM SPOKES

They can be described in many ways:
A piece of steel, a wire, a spring, or, as we prefer, the bond between the hub and the rim.

As the connecting link between the hub and the nipple, the spoke has multiple functions:

- Support: The spokes support the weight of the bicycle and its load.
- Absorption: The spokes absorb road irregularities, ensuring the rider's comfort.
- Transmission: The spokes transmit the cyclist's acceleration and braking effort.

CX-RAY

Usage:
Road, Mountain Bike, BMX, Downhill

Technical Data:

  • Weight: (64 x 260 mm) 272g
  • Material: Stainless steel
  • Strength at the central section: 1600 N/mm²
  • Length: 135 - 310 mm
  • Diameter: 2.0 - (0.9x2.2) - 2.0
  • Aerodynamic elliptical section

LASER

Usage:
Road, Mountain Bike

Technical Data:

  • Weight: (64 x 260 mm) 283g
  • Material: Stainless steel
  • Strength at the central section: 1500 N/mm²
  • Length: 145 - 310 mm
  • Diameter: 2.0 - 1.5 - 2.0

RACE

Usage:
Mountain Bike, BMX

Technical Data:

  • Weight: (64 x 260 mm) 363g
  • Material: Stainless steel
  • Strength at the central section: 1300 N/mm²
  • Length: 135 - 310 mm
  • Diameter: 14G 2.0 - 1.8 - 2.0

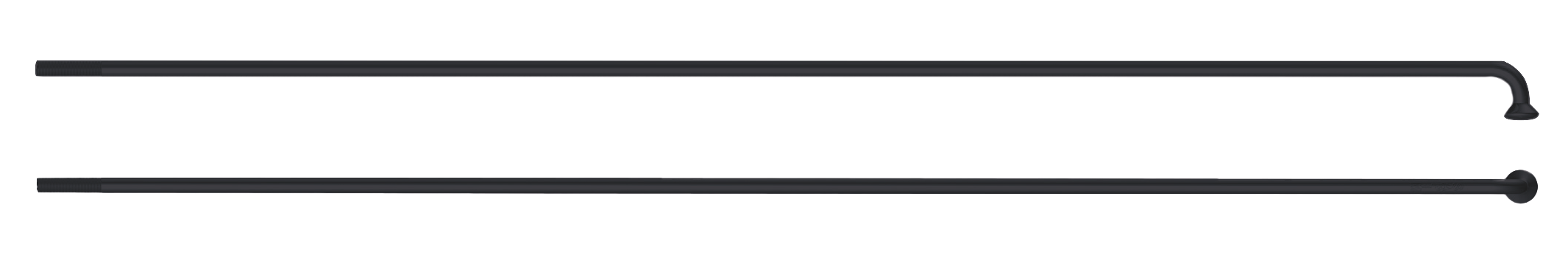

LEADER



Usage:
Trekking, E-bike

Technical Data:

  • Weight: (64 x 260 mm) 431g
  • Material: Stainless steel
  • Strength at the central section: 1080-1180 N/mm²
  • Length: 145 - 310 mm
  • Diameter: 15G - 1.8 mm; 14G - 2.0 mm; 13G - 2.3 mm; 12G - 2.6 mm





 CARBON SPOKES

In addition to traditional steel spokes, carbon spokes are available on the market, offering significant advantages in terms of weight and aerodynamics.

  • Cylindrical carbon spokes: These have a round cross-section, similar to traditional metal spokes. They are ideal for cyclists seeking to reduce their bike's overall weight without compromising strength.
  • Bladed spokes: Also known as flat spokes due to their elongated flat cross-section. The flat shape helps reduce air resistance, a crucial factor in high-speed competitions.

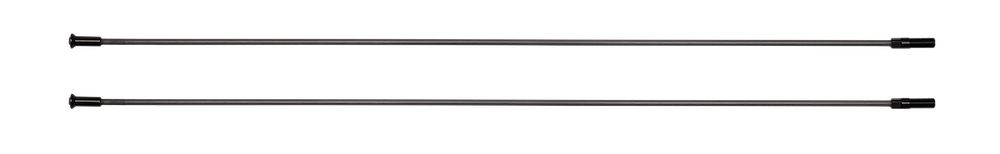

CYLINDRICAL



Usage:
Mountain Bike

Technical Data:

  • Weight: (64 x 260 mm) 196g
  • Length: 280-300 mm
  • Diameter: 2.2

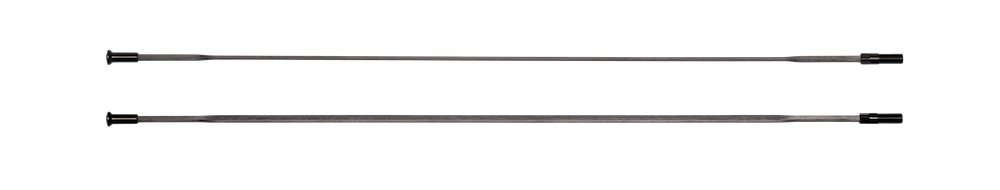

FLAT



Usage:
Road

Technical Data:

  • Weight: (64 x 260 mm) 196g
  • Length: 280-300 mm
  • Diameter: 2.2 - (1.45 x 3.10) - 2.2
  • Aerodynamic elliptical section
